CMM measuring arm

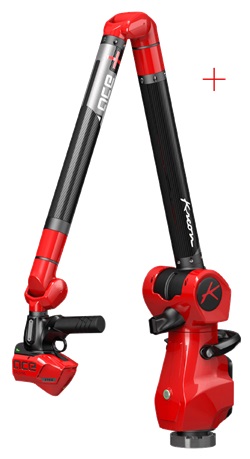

Kreon 7-axis measuring arm ACE+ with Skyline wide scanner

The fast and accurate Kreon 3D measuring arm of the Ace+ series is light and very portable.
The body of the measuring arm is made of carbon fiber.
It is equipped with built-in sensors to ensure excellent temperature compensation for the arm, so you can easily move the measuring arm and take measurements anywhere.

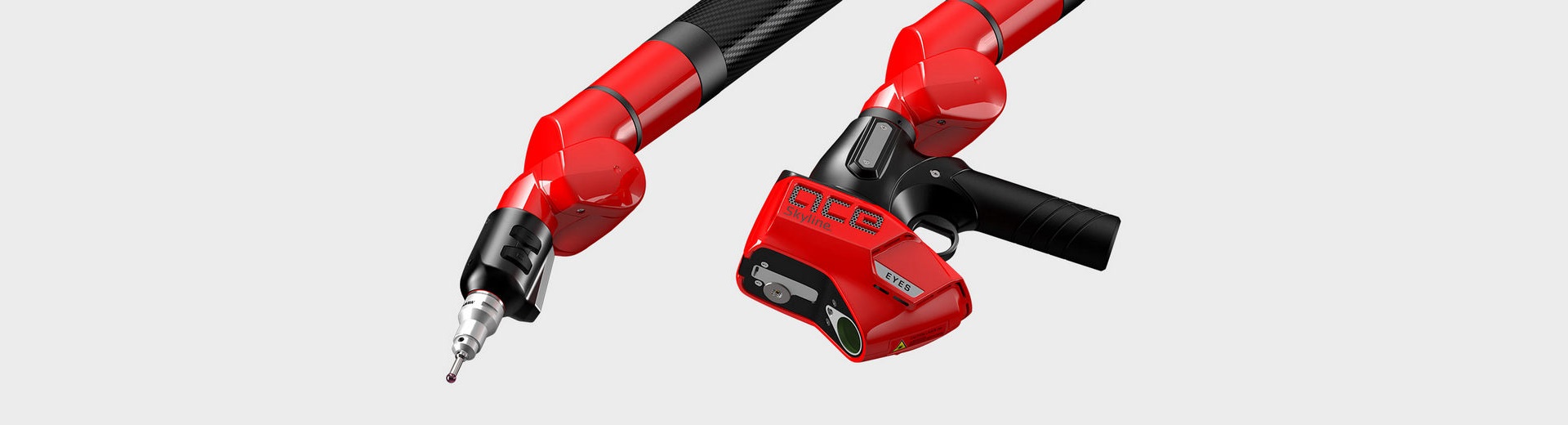

The arm is complemented by a SKYLINE WIDE scanning head with a blue laser beam for very accurate and fast scanning thanks to the wider scanning beam.

Measuring arm Kreon ACE+ 7-30

• Axes: 7
• Measuring range: 3 m
• Touch Arm Accuracy*: SPAT 0,039 mm, EUNI 0,052 mm, PSIZE 0,017 mm, PFORM 0,030 mm, LDIA 0,074 mm
• Touch probe ø: 3 mm, 6 mm
• Operating temperature range: 10-45°C
• Relative humidity: 10-95%, non-condensing

Scanner head Kreon Skyline WIDE

• Max scanning speed: 600 000 pts/sec
• Max laser line width: 200mm
• Accuracy (2σ): 15μm
• Accuracy with arm: 0,056 mm LDIA scanning* with arm ACE+ 7-30
• Field of view: 110mm
• Laser line color: Blue, 2M
• LED indicators
• Temperature compensation
